Multi Functional Perforated Metal Plate Designed for Ventilation Sound Insulation and Anti Slip Applications with Custom Hole Patterns

起源の場所	中国
ブランド名	TT
証明	ISO9001
モデル番号	図面に応じたカスタマイズにも対応
最小注文数量	100個
価格	USD3-10 /SET
パッケージの詳細	コンテナ内のパレットまたはリクエストに応じたパレット
受渡し時間	5～8営業日
支払条件	L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力	1日あたり1000平方メートル

商品の詳細

技術	穴あき、溶接メッシュ	パッキング	カートン
織りスタイル	穴あき	カスタマイズ	利用可能
生産技術	パンチング,切断,曲げ,溶接	表面仕上げ	ポリッシュ / パウダーコーティング / アルマイト / 亜鉛メッキ
応用	濾過・装飾・防音・換気	エッジタイプ	滑らか / バリ取り
他の	あなたの要件として	製品名	穴あき金属板
ハイライト	perforated metal plate ventilation , anti-slip perforated metal plate , custom hole pattern metal plate

メッセージ

製品の説明

Multi Functional Perforated Metal Plate Designed for Ventilation Sound Insulation and Anti Slip Applications with Custom Hole Patterns

Also known as Perforated Sheet, Perforated Metal Mesh is a premium metal material produced by punching a variety of regular and irregular holes on metal panels via high-precision stamping equipment. Balancing robust structural strength and versatile performance, it suits a broad range of industrial applications. Meanwhile, full customization is available in specifications, raw materials, colors and surface finishes to perfectly adapt to diverse working and environmental conditions.

I. Core Product Features

Stable Structural Performance

Adopting integral one-piece stamping technology, the evenly distributed openings will not compromise the overall structure of the metal sheet. The product delivers outstanding compression and tensile resistance, featuring great deformation and fracture resistance, as well as an extended service lifespan.

Diversified Functional Performance

It combines multiple practical properties, including ventilation, daylighting, filtration, sound insulation, anti-slip and decorative effects. The functional performance can be flexibly adjusted by changing hole specifications to fit diversified application demands.

Powerful Customization Flexibility

Raw materials, hole diameter, hole shape, panel dimensions and colors can all be tailored on request. It perfectly meets personalized demands across industrial construction, interior and exterior decoration and other sectors.

Simple Installation & Low Maintenance

Featuring lightweight and streamlined structure, the plate can be freely cut, spliced and installed on site. No complicated daily maintenance is required, and the smooth surface allows easy cleaning, effectively lowering long-term operating costs.

II. Core Technical Specifications

Panel Size

Sheet thickness: 0.3mm to 12mm (common range: 0.5mm–5mm); width: 300mm–1500mm; length: 1000mm–6000mm. Custom cutting and special dimensional processing are available upon request.

Hole & Pitch Specifications

Hole diameter: 0.5mm–100mm (conventional size: 1mm–20mm); center hole pitch: 1mm–150mm. Hole density is customizable, with three mainstream arrangement modes: straight row, widely used staggered row, and diagonal row.

Hole Shapes

Regular options include round, square, rectangular, slotted and hexagonal holes; customized decorative shapes cover diamond, plum blossom, five-pointed star and special irregular holes. Round holes remain the most popular option with the widest compatibility.

Open Area Ratio

Adjustable from 5% to 60% based on needs. The open area directly determines ventilation, daylighting and filtration efficiency. A higher open area offers better air permeability and light transmission, while a lower ratio ensures stronger structural stability.

Dimensional Tolerance

Sheet thickness tolerance: ±0.05mm to ±0.2mm; hole diameter tolerance: ±0.03mm to ±0.1mm; overall dimension tolerance: ±1mm to ±3mm. Tolerance accuracy can be upgraded for high-precision projects.

III. Material Selection

Multiple material options are available according to on-site corrosion, temperature and load-bearing requirements:

Stainless Steel (Most Widely Used):304, 316 and 316L grades. Excellent in corrosion resistance, high temperature resistance and rust prevention, ideal for outdoor, humid, acid and alkali environments such as chemical, marine and food processing industries.
Carbon Steel (Mild Steel):Q235 grade. Cost-effective with high mechanical strength, suitable for indoor dry areas and non-load-bearing occasions. Surface treatment can be added to enhance its anti-corrosion capability.
Galvanized Steel:Available in hot-dip galvanized and electro-galvanized types. The galvanized coating provides better rust protection than ordinary carbon steel, suitable for outdoor fences, municipal facilities and outdoor projects.
Aluminum Sheet:Lightweight, ductile, corrosion-resistant and aesthetically pleasing. Perfect for scenarios requiring light weight and high appearance, such as decoration, aerospace and automotive industries.
Copper Sheet:Outstanding in electrical conductivity, thermal conductivity and corrosion resistance, applicable to electronic equipment, chemical engineering and high-grade decorative projects.

IV. Color & Surface Finish

The final color of perforated metal plate depends on surface treatment, with both standard and custom colors available to satisfy functional and decorative needs:

Regular Colors

Silver (original stainless steel / aluminum color), galvanized gray, black, white, grayish blue and red (powder coating finishes), widely used in general industrial and construction projects.

Custom Colors

Custom powder coating, anodizing and spraying colors can be provided per customers’ Pantone codes or color samples, matching the overall design of building facades, interior decoration and customized projects.

V. Application Scope

Thanks to multi-functional advantages, perforated metal plates are widely applied in industry, construction, decoration, environmental protection and other fields:

Construction Industry:Building facades, ceiling panels, partition walls, sunshade panels, sound insulation walls, stair railings and exterior wall decoration, improving both building beauty and practicality.
Industrial Industry:Machine protective covers, filter plates, sieve panels, ventilation grilles, noise reduction equipment and conveyor screens, serving chemical, pharmaceutical, food, metallurgy and other industries.
Decoration Industry:Indoor ceiling and wall decoration, furniture accessories, exhibition hall decoration and advertising sign panels, creating unique visual effects.
Environmental Protection & Municipal Engineering:Sewage treatment filters, waste screening, municipal green fences, road sound barriers and public facility decoration.
Other Fields:Automotive accessories, aerospace parts, electrical enclosures and household appliance filters, meeting special functional requirements of various industries.

VI. Product Performance Comparison

Compared with conventional metal plates, woven wire mesh and plastic mesh, perforated metal plate delivers comprehensive superior performance:

Comparison Item	Perforated Metal Mesh	Ordinary Metal Plate	Woven Metal Mesh	Plastic Mesh
Structural Strength	High Integral stamping, stable structure, strong compression & tension resistance, anti-deformation	High Solid structure but non-porous, poor functional performance	Medium Woven structure, easy to loose and break at joints	Low Poor compression resistance, prone to aging and fracture
Multi-Functionality	Excellent Combines ventilation, lighting, filtration, sound insulation and decoration; adjustable via hole design	Weak Only for load bearing and protection, no ventilation or filtration	Medium Basic ventilation & filtration, weak sound insulation and decoration	Medium Simple ventilation and filtration, poor durability and sound insulation
Customization	Strong Customizable material, hole style, size, color and open area	Limited Only size and material adjustable, no hole customization	Medium Custom mesh size, single hole style	Medium Custom size and color, poor structural customization
Installation & Maintenance	Easy Lightweight, cuttable and spliceable, easy to clean with low upkeep	Hard Heavy weight, difficult processing and high maintenance cost	Medium Easy to install but hard to clean and stain-resistant	Easy Lightweight installation, but short service life and frequent replacement
Applicable Scenarios	Extensive Industry, construction, decoration, environmental protection, aerospace, etc.	Restricted Only for mechanical and building load-bearing protection	General Mainly for industrial and agricultural filtration & screening	Limited Only for light-duty ventilation and daily isolation
Durability	Excellent Optional corrosion & high temperature resistance, long service life	Good Easy to rust without anti-corrosion treatment	Medium Vulnerable to corrosion and loosening, short service life	Poor Aging easily, brittle under high temperature and heavy load

In conclusion, perforated metal mesh achieves an optimal balance between structural rigidity and diversified functions. With powerful customization and wide application adaptability, it gains prominent competitive advantages over similar products in most engineering and commercial projects.

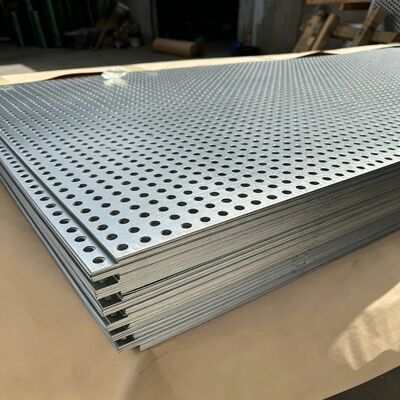

Multi Functional Perforated Metal Plate Designed for Ventilation Sound Insulation and Anti Slip Applications with Custom Hole Patterns 0

|Frequently Asked Questions

Q: Are you trading company or manufacturer?

A: We are manufacturer.

Q: How long is your delivery time?

A: Generally 5-10 days for in-stock items, or 15-20 days for out-of-stock items depending on quantity.

Q: Do you provide samples? Is it free or extra?

A: Yes, we offer samples but customers must cover the cost and freight.

Q: What are your payment terms?

A: For orders ≤1000USD, 100% in advance. For orders ≥1000USD, 50% T/T in advance with balance before shipment.

For additional questions, please feel free to contact us.
